Rugged Tablet PC-MCA9


Intel® Atom Z530P 1.6GHz Processor, 512KB L2 Cache
Intel® US15WP system controller hub (SCH)
Intel® graphics media accelerator 500
8.9" TFT LCD (WSVGA LED backlight), touch screen/Sunlight readable (optional)
1GB RAM (Upgradable to 2GB Max.)
16GB SSD+ 16GB SDHC
WLAN 802.11 b/g/n
Bluetooth 2.1 class ll+ EDR
WWAN module  (HSUPA/E-GPRS) (optional)
2.0 Mega-Pixels camera
1D Barcode scanner (optional:1D/2D barcode scanner)
13.56 MHz RFID reader supports ISO/IEC 15693 & ISO 14443 A/B standard
Fully rugged design, meet IP65 & MIL-STD-810G
Mg-Al alloy Housing & Fan-less design
Free drop over 3 feet still survive



Features:

Specifically designed for medical and clinical applications, Samwell”s compact, lightweight and silent MCA9 tablet visually fits right into healtcare settings. And the tough and well-sealed housing is easy to clean and holds up to clinical disinfectants and its rugged magnesium-aluminum construction can easily handle the occsional drop or spill.

Medical applications benefit from the MCA”s wide range of data capture, recording and transmission capabilities. A built-in camera can be used for documentation. The integrated 1D/2D scanner and 13.56 MHz RFID reader open new possibilities for accuracte and efficient patient identification, medication administration, medical history and tracking, and more. Small size, light weight and extensive integrated wireless connectivity allow medical personnel instant database access no matter where they are, assisiting optimal diagnostics and patient care.

The concept behind the MCA9 is to provide clinical and healthcare environments with a simple, efficient, multi-function mobile computing tool that enhances workflow, lowers transcription errors and helps in providing optimal patient care.


Specifications:
CPU

Intel® Atom Z530P 1.6GHz Processor
Intel® US15WP system controller hub (SCH)

LCD Panel

8.9” WSVGA (1024x600) TFT LCD resistive touch panel
Optional: Sunlight readable display

Memory &
Storage

1GB RAM (up to 2GB max)
32GB SSD
Optional: 64GB SSD

Audio Build-in microphone and speaker

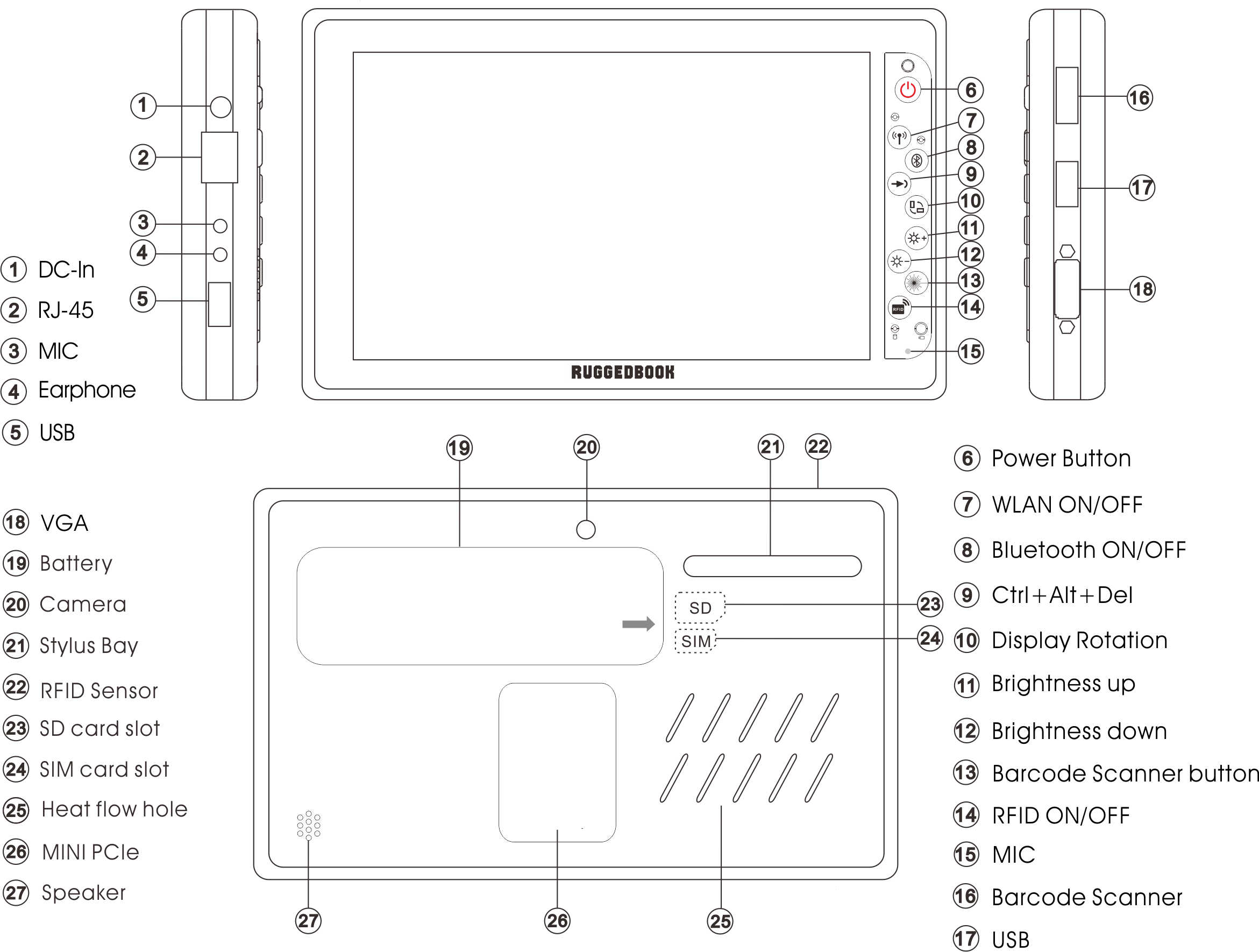

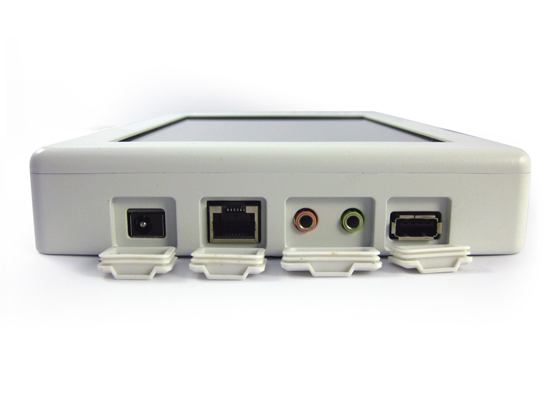

Interface

2 x USB 2.0
1 x VGA
1 x RS232
1 x RJ-45
1 x Earphone
1 x MIC
1 x DC-in
1 x Docking connetor

Expansion Slots

1 x SD/MMC slot
1 x SIM slot

Camera

1 x 2.0 Mega-Pixels camera
Optional: 5.0 Mega-Pixels camera

Barcode Scanner

1D barcode scanner
Optional: 1D/2D barcode scanner

RFID HF RFID reader
Wireless

WLAN 802.11 b/g/n
Bluetooth 2.1 class II+ EDR
Optional: WWAN

Power Supply

Adapter Input AC: 100V-240V,50Hz-60Hz
Output: DC 12V/36W
Li-Ion battery 5200 mAh
6 max. hours in normal usage

Button Key

Power button
Screen Rotation
SAS key
WLAN
Bluetooth
Switch
Volume up
Volume down
Brightness up
Brightness down

Software

Windows XP Tablet PC Edition
Windows 7 Professional Edition

Operating
Temperature

Operating:0℃ to + 60℃;
Storage: -40℃ to +85℃
Cold boot: 0℃(battery >75% charge)

Dimension &
Weight

252x153x40mm (with bumper)
252x153x33mm (without bumper)
1.2 kg

Durability Features IP65, MIL-STD-810G
Certification

FCC
CE
cUL (EM60601-1)

Accessories

Service DVD
Power cord
Power adapter
Stylus
Hand strap kit
Anti-scratch surface film

Warranty 1yr up to 3yrs limited warranty















Strap

Docking station

Protection film


RAM Mount kit

Battery pack

AC power adapter:


Stylus


Healthcare/Medical
